Sale!

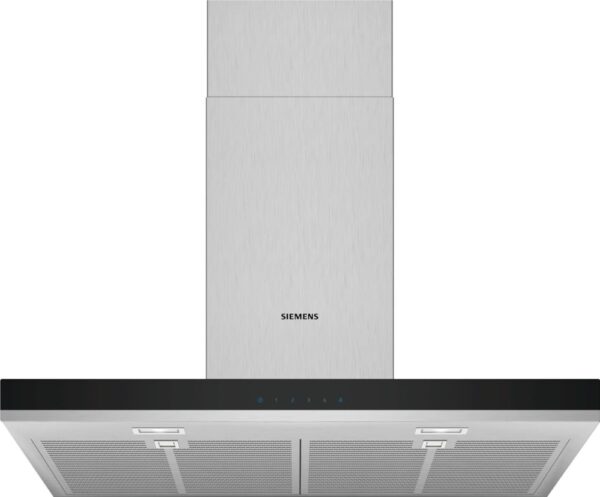

Siemens 75cm Box Design Chimney Extractor Hood – LC77BHM50B

Original price was: €599.00.Current price is: €569.00.

– 75cm Box Design Chimney Hood by Siemens features:

– Energy Efficiency Class: B

– 3 Power levels+ Intensive

– max. Normal use 450 m³/h

– Intensive 710 m³/h

– touchControl Power Levels

– 2 x 1.5w LED Light

– 2 dishwasher safe metal grease filter cassettes

– Dimensions exhaust air (HxWxD): 635-965 x 750 x 500 mm

SKU: LC77BHM50B Categories: , , , Brand:
Compare

LC77BHM50B Siemens 75cm Box Design Chimney Extractor Hood

LC77BHM50B Siemens

Box design extractor hood with high extraction rate.

  • The powerful motor with a high extraction rate of 710 m³/h for fresh air in your kitchen.
  • The energy-saving LED lighting ensures optimal visibility when cooking.
  • At 65 dB the hood is especially quiet when being used.
  • When required the intensive setting temporarily increases the extraction rate, with automatic revert after 6 min.
  • Thanks to touchControl the power levels and the LED light can be quickly and easily selected.



Highlights



Intensive setting with automatic after revert setting



The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.



Key performance features:

  • Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 450 m³/h
    Intensive 710 m³/h
  • Noise max. Normal Level: 65 dB*



Features

  • touchControl for extractor speeds and light
  • touchControl with Electronic display
  • 3 x power levels plus intensive setting
  • Twin channel high performance fan motor
  • 2 x 1.5W LED
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)
  • 2 x metal grease filter cassettes
  • Steel filter cover
  • For wall mounted installation



Design

  • Box design
  • Chimney hood
  • Electronic control



Performance/technical information

  • Suitable for ducted and re-circulating operation
  • For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
  • Max. extraction rate: 710 m3/h
  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 450 m³/h
    Intensive 710 m³/h
  • Extraction rate in recirculation mode:
    Max. normal use: 320 m³/h
    Intensive: 370 m³/h
  • Noise max. Normal Level: 65 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
    Intensive: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
  • Noise levels in recirculation mode:
    Max. normal use: 74 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
    Intensive: 77 dB(A) re 1 pW (65 dB(A) re 20 µPa sound pressure)
  • Light Intensity: 221 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 635-965 x 750 x 500 mm
  • Dimensions recirculating, chimney (HxWxD): 635-1075 x 750 x 500 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    703 x 750 x 500 mm - mounting with outer chimney
    833-1163 x 750 x 500 mm - mounting with telescopic chimney
  • Energy Efficiency Class: B (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 59.5 kWh/year*
