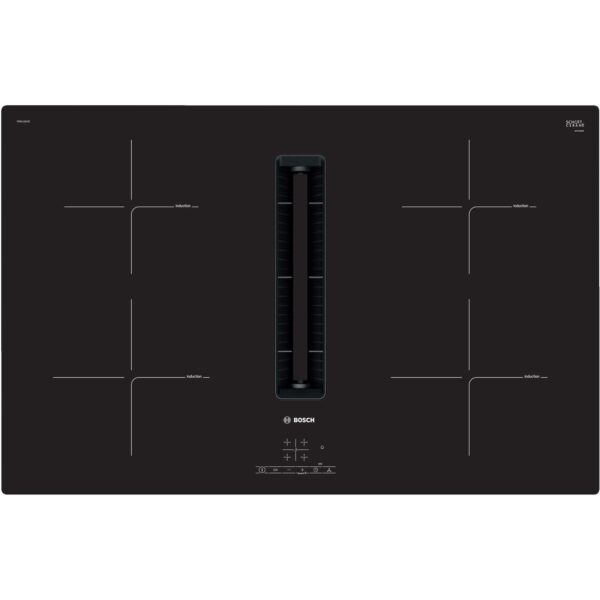

Hob Specifications:
Frameless black glass
4 heat zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction;1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction
Electronic touch controls
Variable 17-stage power settings for each zone
Timer for all zones
Boost setting for all zones
Automatic pan recognition
ReStart function
QuickStart function
Control panel lock
2 stage residual heat indicator for each zone
Automatic safety switch-off
Extractor Specifications:
Electronic touch controls
3 speed settings plus boost
Automatic switch-on of ventilation system when a cooking zone is used
Automatic delayed shut-off
Extraction performance in ducted extraction (according to EN 61591): min. normal setting 332 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 575 m3/h .
Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 327 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 565 m3/h.
Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 60 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW.
Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 58 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 70 dB re 1 pW.
Connected load: 7.4 KW
